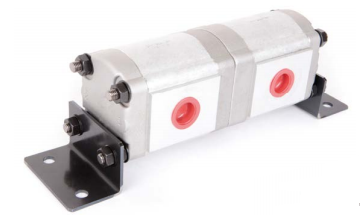

HYDROMAX新鸿油泵_同步分流马达_DFM-302A

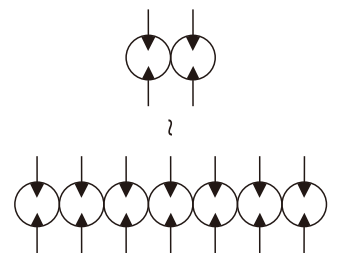

SCHEMATIC SYMBOL

ORDER CODES

Model Name	DFM-3
Stations	02A 2 stations
	03A 3 stations
	04A 4 stations
	05A 5 stations
	06A 6 stations
	07A 7 stations
Flow Rate	4,6,8,11,13,14,17,19,23,25,28,30,35
Funtional Type	M synchronous flow divider

SPECIFICATIONS

Model	Accurate	Operational Pressure (kgf/cm2)	Speed	(r.p.m)
	Displacement				Port Size	（PT）
	Capacity
	(cc/rev)	normal	Loaded	Unloaded
DFM-30 * A-4M	4	210	1000	2000	3/4“	1/2“
DFM-30 * A-6M	6	210	1000	2000	3/4“	1/2“
DFM-30 * A-8M	8.4	210	1000	2000	3/4“	1/2“
DFM-30 * A-11M	11	210	1000	2000	3/4“	1/2“
DFM-30 * A-13M	13	210	1000	2000	3/4“	1/2“
DFM-30 * A-14M	14.3	210	1000	2000	3/4“	1/2“
DFM-30 * A-17M	16.5	210	1000	2000	3/4“	1/2“
DFM-30 * A-19M	19.2	210	1000	2000	3/4“	1/2“
DFM-30 * A-23M	23	210	1000	2000	3/4“	1/2“
DFM-30 * A-25M	25	210	1000	2000	1“	3/4“
DFM-30 * A-28M	28	210	1000	2000	1“	3/4“
DFM-30 * A-30M	30	210	1000	2000	1“	3/4“
DFM-30 * A-35M	35	210	1000	2000	1“	3/4“

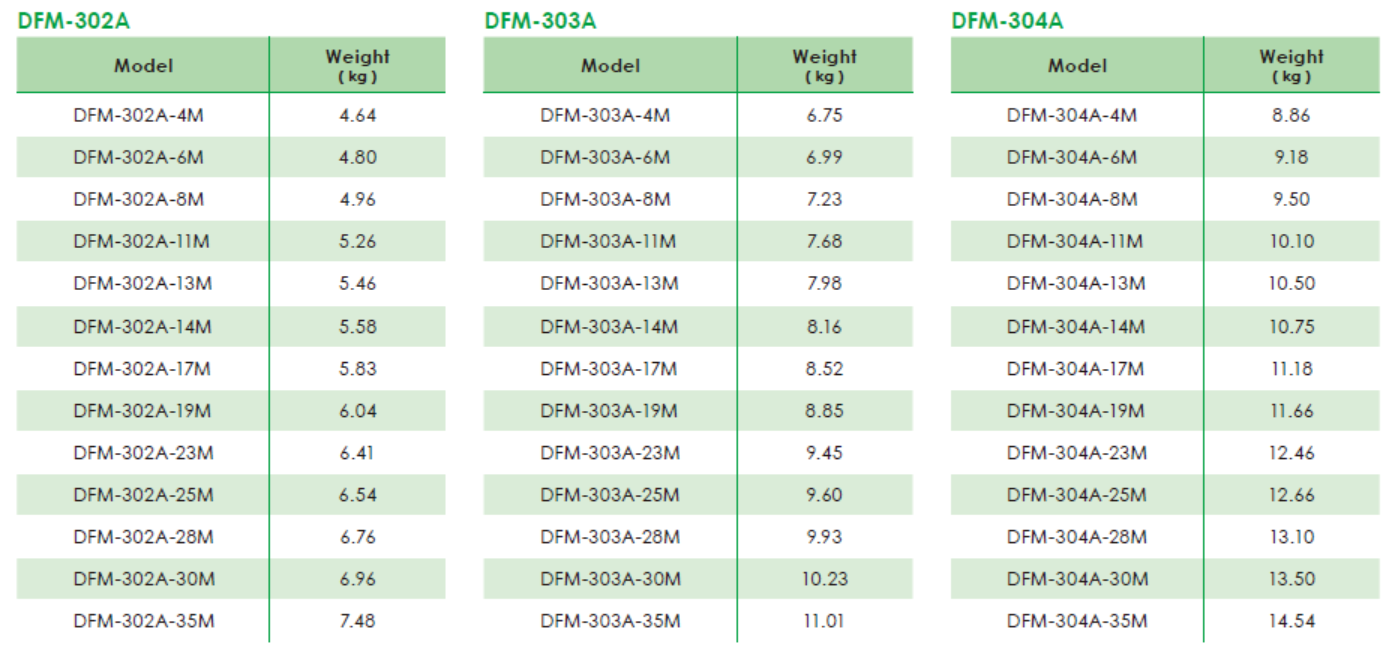

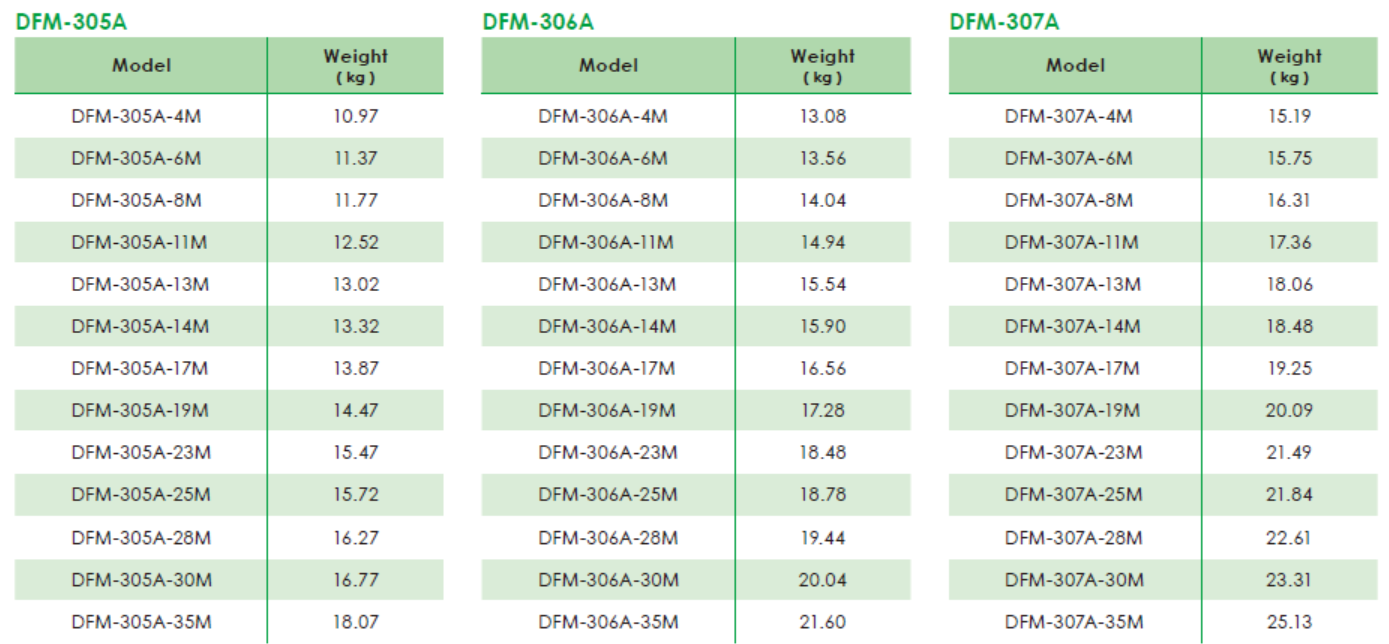

MODEL WEIGHT

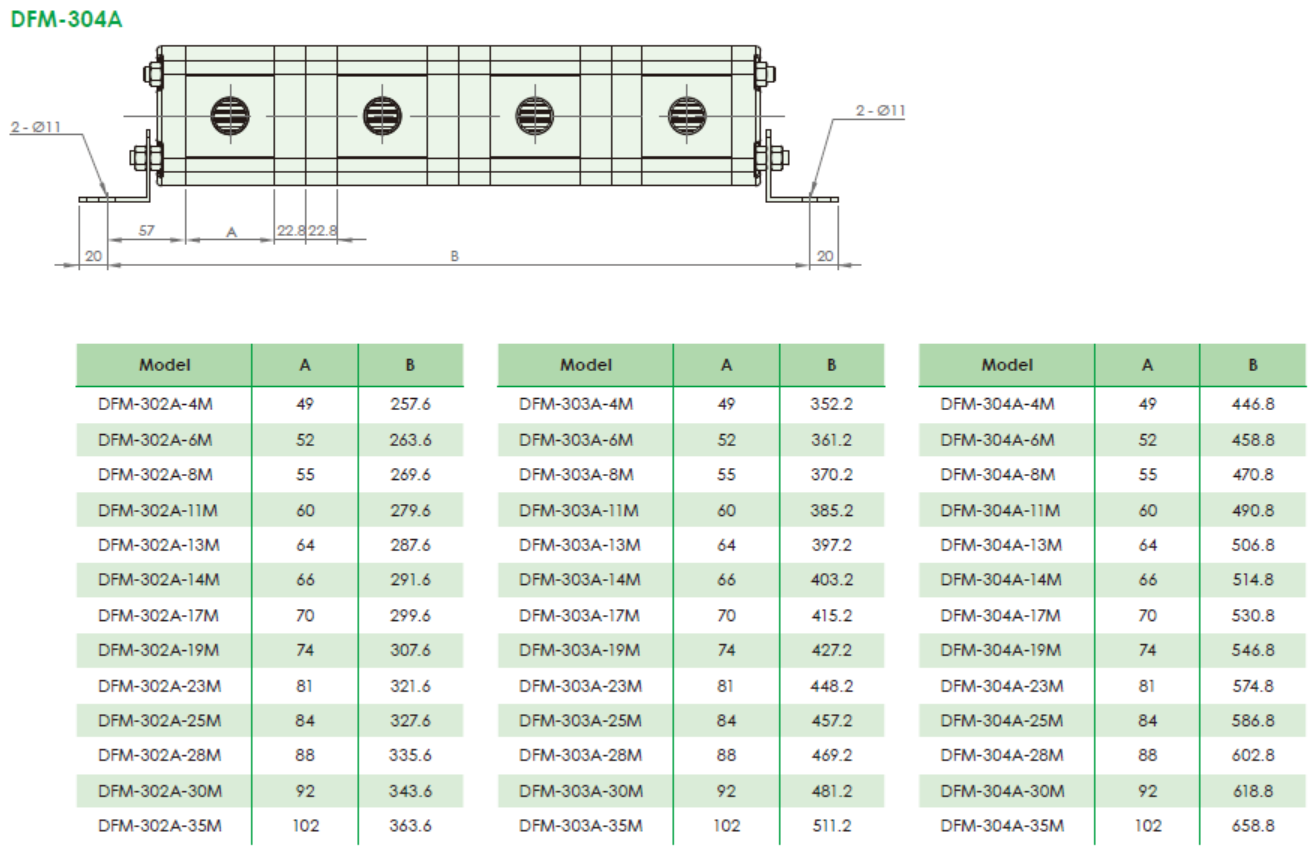

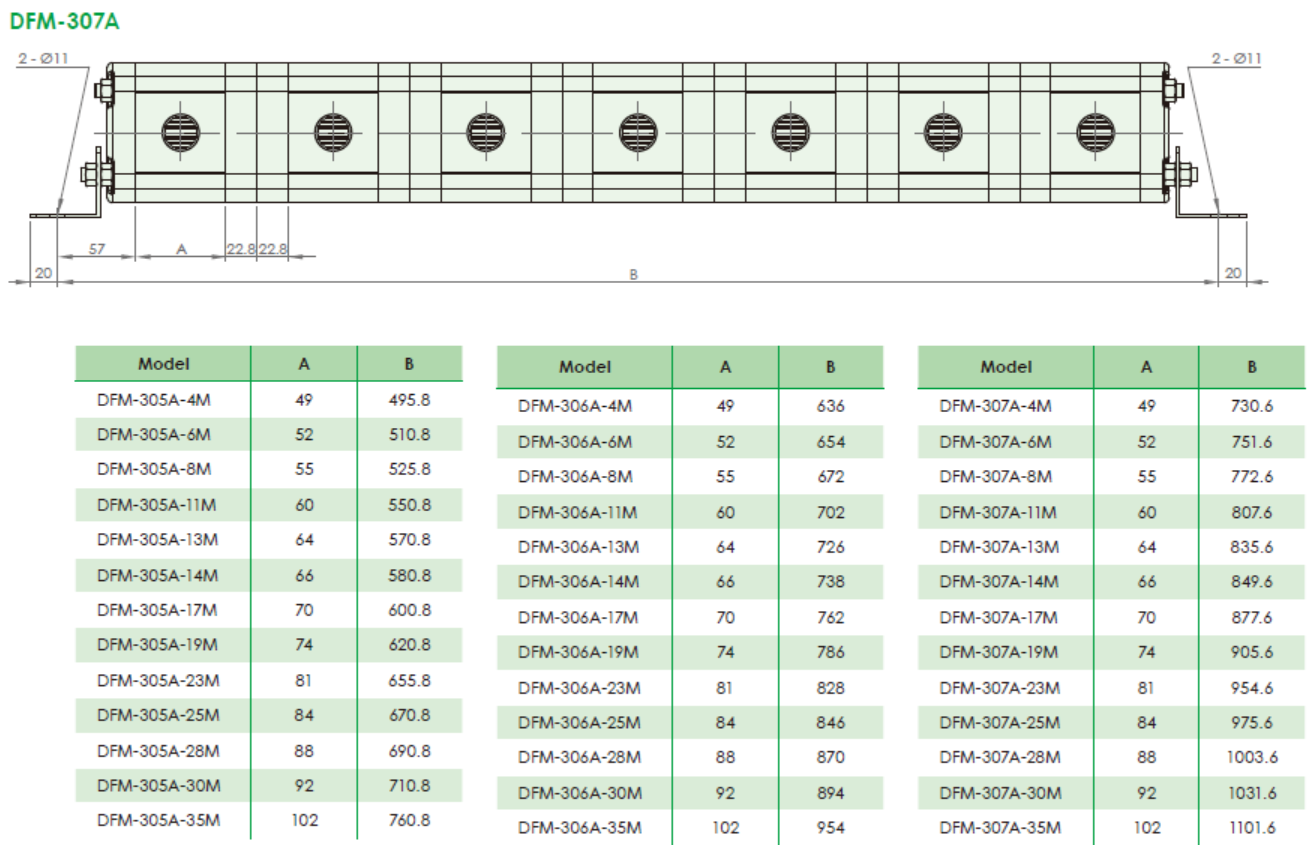

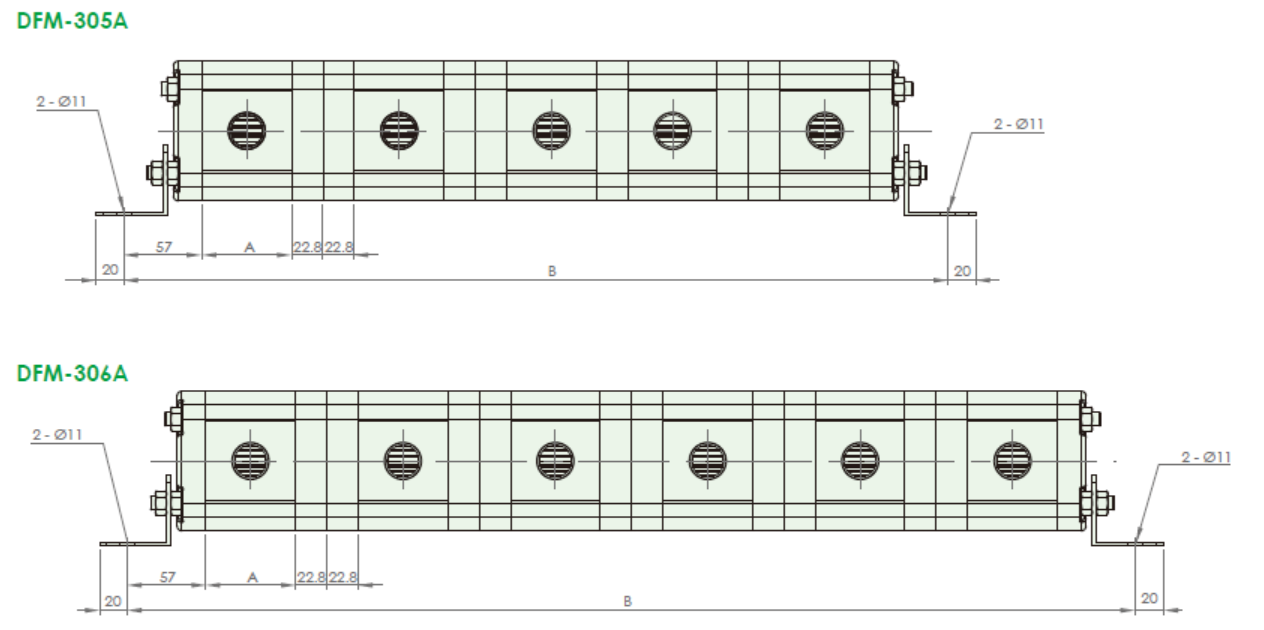

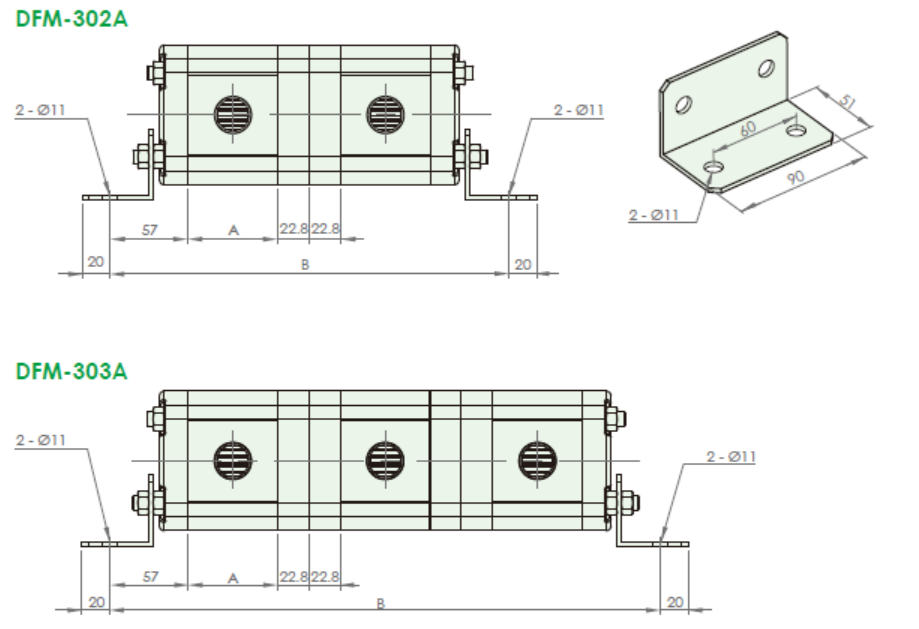

DIMENSIONS(UNIT:mm)
